RAM Mount 1" Ball Double Socket Arm w/2 2.5" Round Bases - AMPS Hole Pattern

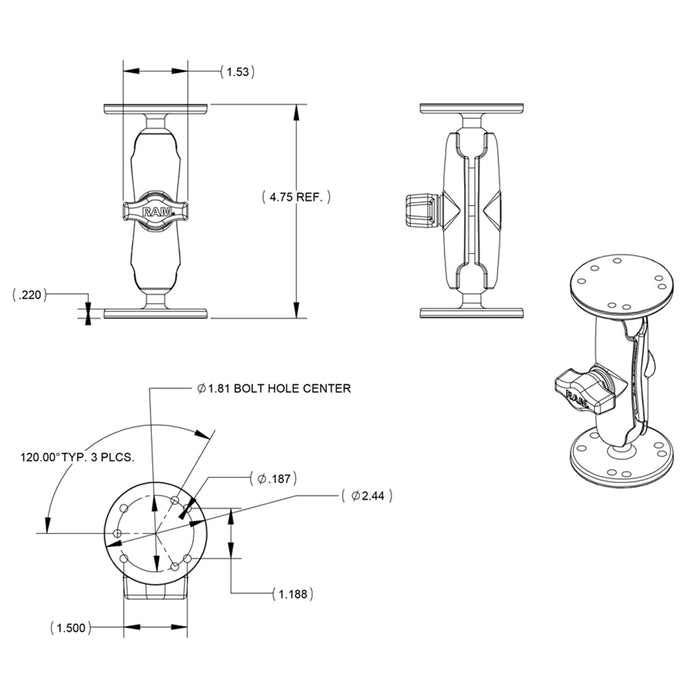

The RAM Mount 1" Ball Double Socket Arm with 2 Round Bases (RAM-B-101U) is a complete surface-to-surface mounting kit. It includes a double socket arm and two 2.5" round bases with the universal AMPS hole pattern, all using a 1" B size rubber ball and socket system. Both ends of the arm have adjustment points, giving you a wide range of positioning options. Overall height is 4.75". Powder coated marine grade aluminum.

What It Does on the Water

The RAM-B-101U lets you mount a fishfinder, chartplotter, or other device between two flat surfaces, or from one flat surface to another at a different angle. The 1" B size ball and socket system at both ends of the double socket arm adjusts to almost any angle and locks down firmly. The universal AMPS hole pattern on both bases connects to a wide range of RAM cradles and device holders. The patented rubber ball design absorbs shock and vibration, which helps protect your electronics in rough water. Overall height is 4.75".

Professional Installation at Ben's Marine

Our technicians can incorporate this mount into a complete fishfinder or chartplotter setup, handling the bracket, wiring, and display positioning from start to finish.

Ben's Marine can handle:

• Fishfinder and chartplotter bracket mounting
• Console, gunwale, and dash panel installation
• Power wiring and cable management
• Transducer mounting and placement
• Network setup and sonar configuration
• Software updates and on-screen calibration

Ready to order or have questions about your current helm setup? Call or text us at (218) 820-9781. We're located in the Brainerd Lakes area and ship nationwide.
