Beatdown Rail Adapter

Beatdown Rail Adapter

by Beatdown Outdoors
$59.99 - $59.99
$59.99
$59.99 - $59.99
$59.99

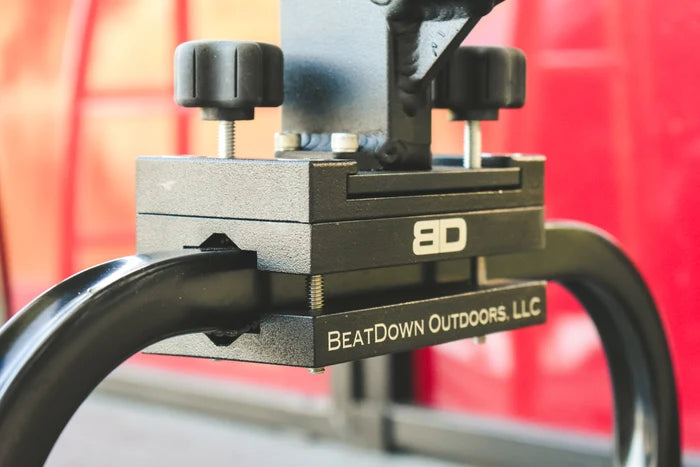

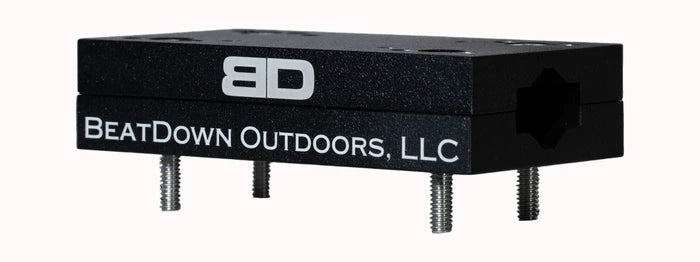

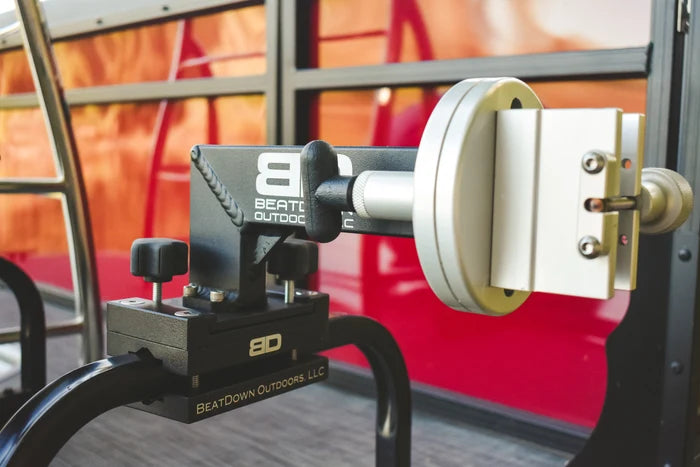

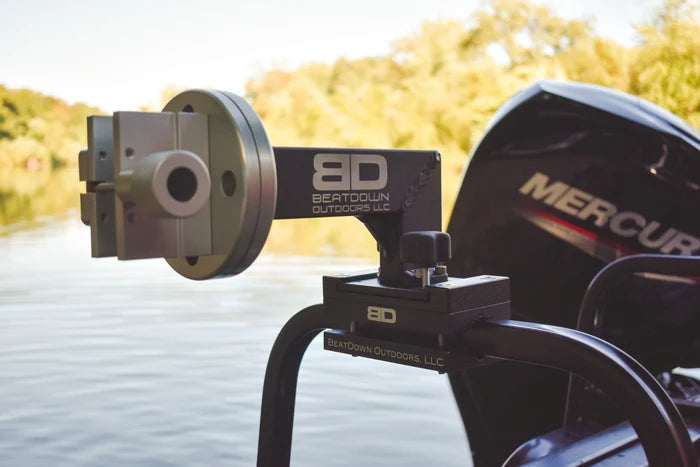

The Beatdown Rail Adapter gives you a removable mounting point for a transducer pole or track accessory on square or round tubing. It fits 7/8 to 1 1/4 inch round railings and 1 1/4 inch square railings, so you can add a mount to a pontoon rail, bow rail, boat arch, or another matching rail system without drilling into the boat.

The adapter bolts directly to a Beatdown transducer base, works with Bass Pro transducer bases, and bolts to common track systems. When you are done fishing, remove the adapter and keep the deck open instead of leaving a permanent mount in place.

The rail adapter uses aluminum and stainless steel, weighs 2 pounds, and has a powder-coat finish. The package includes one top plate, one bottom plate, and four 1/4-20 by 2-inch stainless steel bolts. The pole-arm mounting base is not included. The adapter has a 1-year parts warranty.

Need help checking the rail size, base fit, or mounting location? Call or text Ben's Marine at (218) 820-9781 in the Brainerd Lakes area. We can help you check the setup before you order.

Features
  • The removable adapter mounts transducer poles or track accessories to matching tubing.
  • The adapter fits 7/8 to 1 1/4 inch round railings and 1 1/4 inch square railings.
  • The adapter bolts directly to Beatdown and Bass Pro transducer bases.
  • The adapter bolts to common track systems.
  • The adapter can be removed when you want the deck space open.
  • The package includes the top plate, bottom plate, and four stainless steel bolts.
Specs
  • The adapter fits 7/8 to 1 1/4 inch round railings.
  • The adapter fits 1 1/4 inch square railings.
  • The adapter bolts directly to a Beatdown transducer base.
  • The adapter works with Bass Pro transducer bases.
  • The adapter bolts to common track systems.
  • The adapter uses aluminum and stainless steel.
  • The adapter weighs 2 pounds and has a powder-coat finish.
  • The package includes four 1/4-20 by 2-inch stainless steel bolts.
  • The pole-arm mounting base is not included.
  • The adapter has a 1-year parts warranty.
What's Included

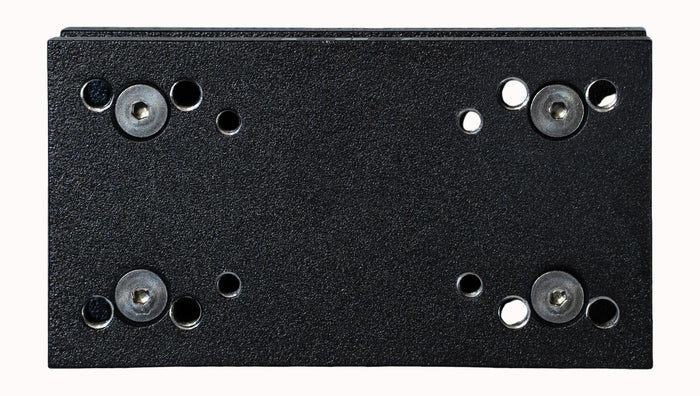

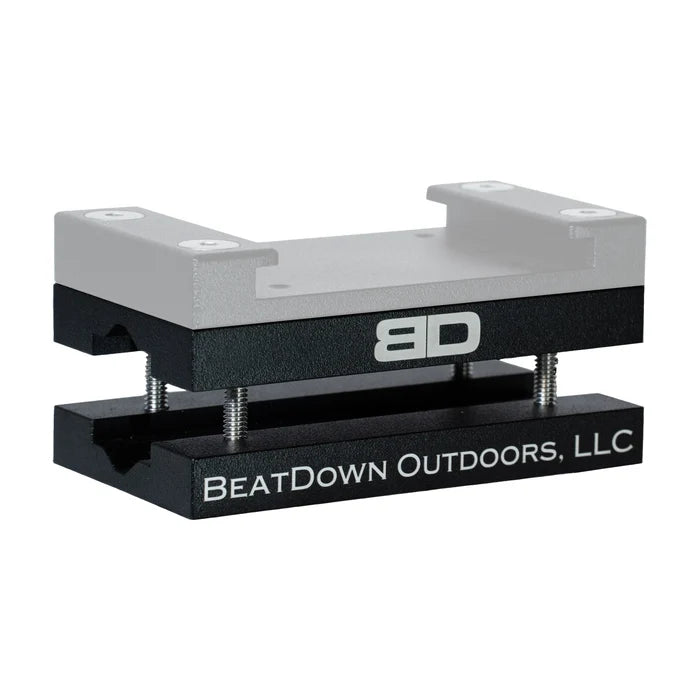

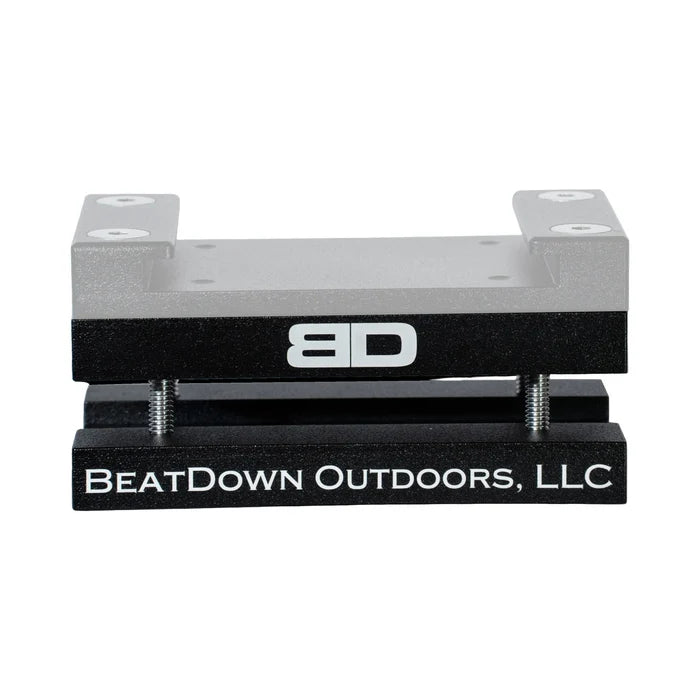

The package includes one rail clamp top plate, one rail clamp bottom plate, and four 1/4-20 by 2-inch stainless steel bolts. The pole-arm mounting base is not included.

Best For

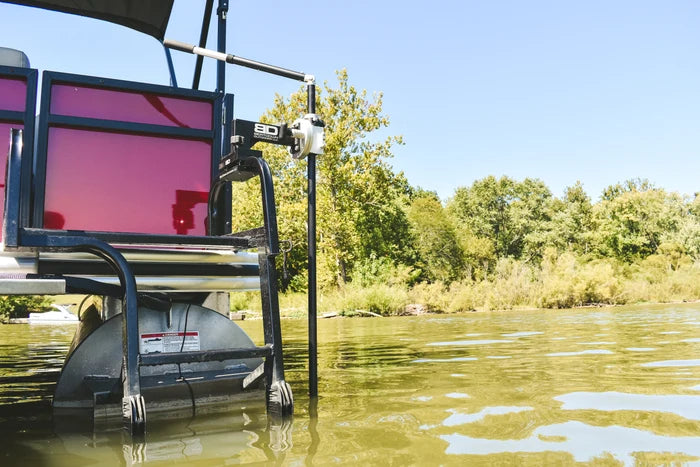

This adapter is for anglers who want a removable transducer pole or track accessory mount on a matching pontoon rail, bow rail, boat arch, or other tubing.

Important Notes

The pole-arm mounting base is not included. Confirm that your rail measures 7/8 to 1 1/4 inches round or 1 1/4 inches square before ordering.
