Beatdown Bridge

Beatdown Bridge

by Beatdown Outdoors
$159.99 - $289.99
$159.99
$159.99 - $289.99
$159.99

The Beatdown Bridge sits over your trolling motor foot pedal. The Beatdown Ultimate or Flex mount bolts to the bridge, which is made from 1/2-inch-thick 6061 aluminum.

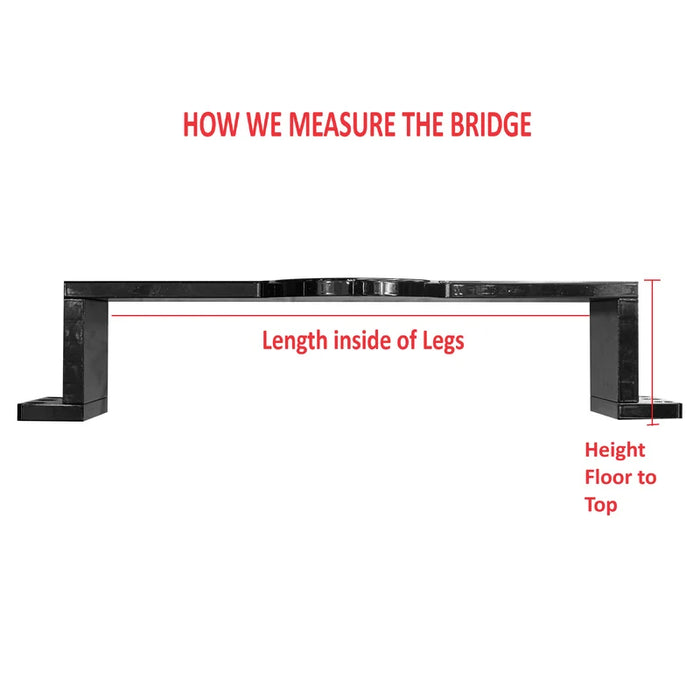

Start by measuring the gap around your trolling motor foot pedal. That measurement tells you which bridge width to order. The available widths are 13.25 inches, 15.25 inches, 17.25 inches, and 22 inches. The 15.25-inch bridge is the most popular choice, but measure before ordering. Bridge heights are 1 inch, 2 inches, and 4 inches.

If the mount lines up over your foot pedal, use the Center layout. If your trolling motor gets in the way, use the Offset layout. Offset moves the mount 3 inches to the right on the 13.25-inch and 15.25-inch widths. It moves the mount 4 inches to the right on the 17.25-inch width. The 22-inch bridge is available in Center layout only.

Each foot is 3.5 inches wide and has three mounting holes. The bridge fits bass and walleye boats and works with Beatdown Ultimate and Flex series mounts. Mounting hardware is not included.

Need help measuring the gap or choosing the height? Call or text Ben's Marine at (218) 820-9781 in the Brainerd Lakes area. We can help you check the fit before you order.

Features
  • The bridge uses 1/2-inch-thick 6061 aluminum.
  • You can choose from four gap widths.
  • You can choose from three bridge heights.
  • Center and Offset layouts are available.
  • The Offset layout moves the mount to the right on supported widths.
  • Each foot is 3.5 inches wide and has three mounting holes.
  • The bridge works with Beatdown Ultimate and Flex series mounts.
Specs
  • The bridge is made from 1/2-inch-thick 6061 aluminum.
  • The available gap widths are 13.25 inches, 15.25 inches, 17.25 inches, and 22 inches.
  • The available bridge heights are 1 inch, 2 inches, and 4 inches.
  • The available layouts are Center and Offset.
  • Each foot is 3.5 inches wide and has three mounting holes.
  • Offset moves the mount 3 inches to the right on the 13.25-inch and 15.25-inch widths, and 4 inches to the right on the 17.25-inch width.
  • The bridge works with Beatdown Ultimate and Flex series mounts.
  • Mounting hardware is not included.
What's Included

The package includes one Beatdown Bridge made from aluminum. Mounting hardware is not included.

Best For

This bridge is for anglers installing a Beatdown Ultimate or Flex series mount over a trolling motor foot pedal on a bass or walleye boat.

Important Notes

Mounting hardware is not included. Measure the foot pedal gap before ordering. The 15.25-inch width is the most popular choice. Offset layout is available with the 13.25-inch, 15.25-inch, and 17.25-inch widths, but not with the 22-inch width.
