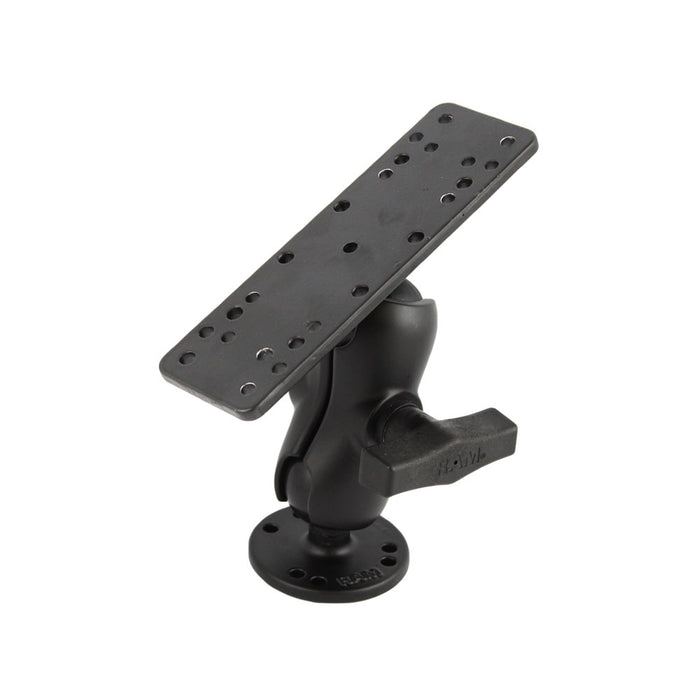

RAM Mount Marine Electronics Mount Short Arm Gimbal Bracket

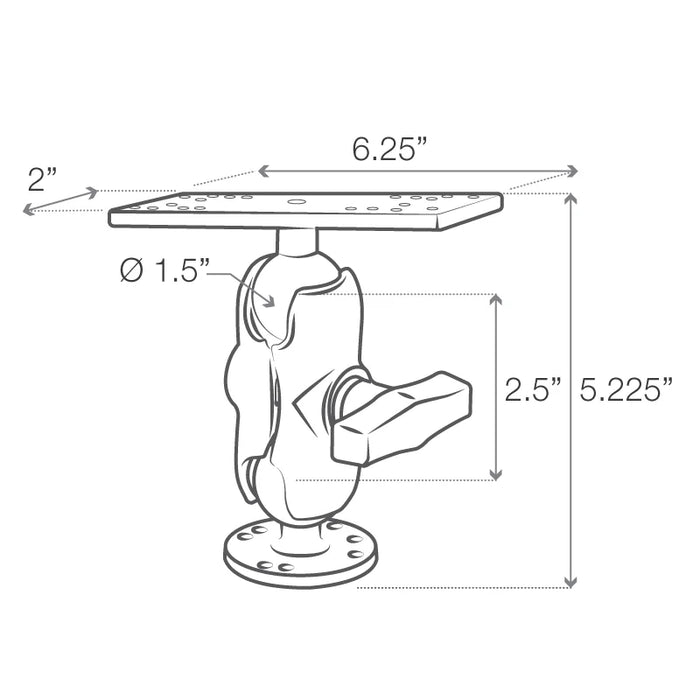

The RAM Mount Marine Electronics Mount Short Arm Gimbal Bracket (RAM-111U-B) is one of the most versatile mounting solutions you can put on a fishing boat. It combines a 2.5" round base with the universal AMPS hole pattern, a short double socket arm, and a 6.25" x 2" rectangle base with pre-drilled hole patterns that line up with Garmin, Humminbird, Lowrance, and Raymarine fishfinders and chartplotters. Powder coated marine grade aluminum, 1.5" rubber ball, and a design that has been trusted on boats for years.

What It Does on the Water

This bracket gives you a solid, adjustable mount for your graph without drilling a bunch of custom holes or fabricating anything. The rectangle base lines up with the factory hole patterns on most major brand fishfinders and chartplotters, including Garmin, Humminbird, Lowrance, and Raymarine units in the 7" to 9" range. The short arm keeps your display close to the mounting surface, which works well on console tops, gunwales, and dash panels where you want the unit tight and out of the way. The 1.5" rubber ball and double socket arm let you dial in the viewing angle and lock it down. Powder coated marine grade aluminum holds up to sun, spray, and vibration without corroding or loosening over time.

Professional Installation at Ben's Marine

Getting your fishfinder or chartplotter mounted right makes a difference in how you use it on the water. Our technicians handle the full install: bracket mounting, wiring, transducer placement, and on-screen setup so everything is dialed in before you leave the shop.

Ben's Marine can handle:

• Fishfinder and chartplotter bracket mounting
• Console, gunwale, and dash panel installation
• Power wiring and cable management
• Transducer mounting and placement
• Network setup and sonar configuration
• Software updates and on-screen calibration

Ready to order or have questions about your current helm setup? Call or text us at (218) 820-9781. We're located in the Brainerd Lakes area and ship nationwide.
