• QUEST Series
• These 24/36V dual-voltage brushless motors have been completely re-imagined from the ground up with updates to mounts, propellers, lift assist systems, drive motors and software – taking the world’s greatest trolling motors and redesigning them to outperform everything else on the water for years to come.
• Stow/Deploy Lever
• Press this lever on the mount and fall-away ramps will effortlessly slide your trolling motor into the water. And when you're ready to move, Auto Park helps the motor stow effortlessly by orienting the lower unit to the perfect stow position automatically.
• Advanced GPS Trolling System
• The most-trusted navigation system in fishing. Terrova uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Lock, record paths, control speed and steering, and more. Minn Kota makes boat positioning and control automatic, and you can take command from the easy-to-read LCD screen of Terrova's wireless remote.
• Part of the One-Boat Network
• Minn Kota motors come standard with everything you need to connect to select Humminbird fish finders. Link and control your trolling motor, shallow water anchor and fish finder through the One-Boat Network App on Apple® or Android™ devices.
• Spot-Lock with Jog
• Spot-Lock will hold you in place with unparalleled GPS accuracy. Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the built-in heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction.
• Drift Mode
• This new feature automatically engages speed and course control simultaneously, meaning anglers no longer need to depend on drift socks, kicker motors, or manual operation to control speed over water – even in the heaviest wind and current.
• Real-time Battery Monitoring
• Check battery power levels while the motor is in use, real-time “time until empty” display monitor, with a notification when battery power is reduced to 20% to prompt users to enter Eco Mode which can reduce current draw to extend battery life.
• Digital Maximizer™
• Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
• Heel-Toe Programmable Electric Foot Pedal
• Low profile design offers two steering options: Heel/toe pedal and left/right steering buttons, plus a user-programable button to keep the most used features a tap away, including: mark a waypoint, engage AutoPilot, or deploy or retract Minn Kota shallow water anchors. Includes 18' cord.
• Built-In MEGA Side Imaging
• With a transducer built right into the motor, you get crystal clear Humminbird® MEGA Side Imaging and a clean protected look.
• Indestructible Carbon-Fiber Infused Shaft — Guaranteed for Life
• At the core of your Minn Kota trolling motor is an indestructible composite shaft, now made even stronger with carbon-fiber. It's a Minn Kota exclusive, and we guarantee it for life.
• What's Included
• Terrova QUEST, Wireless Remote, Lanyard, Corded Foot Pedal, MKP-40 Prop and Mounting Hardware
• No Heading Sensor Required
• Built-in technology delivers accurate steering and boat control without the need for an external heading sensor.
• Warranty
• 3-Year Limited Warranty with Registration

PRODUCT INFORMATION

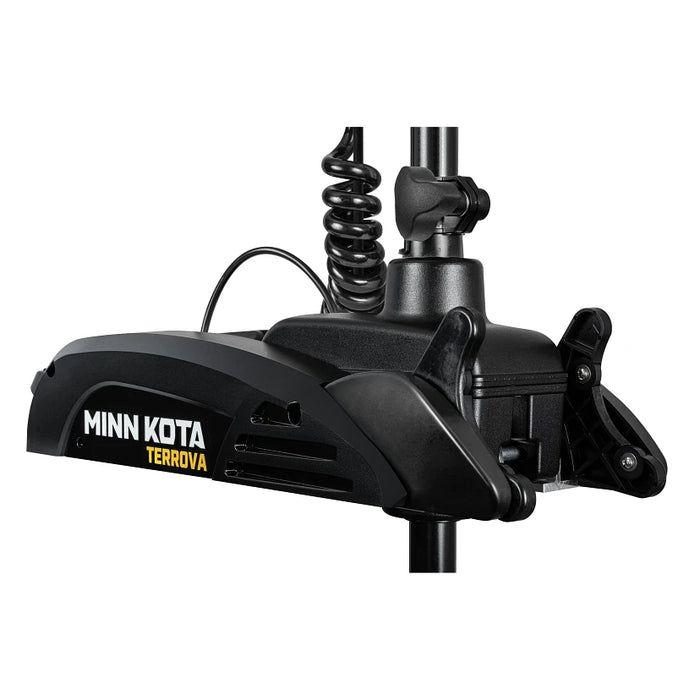

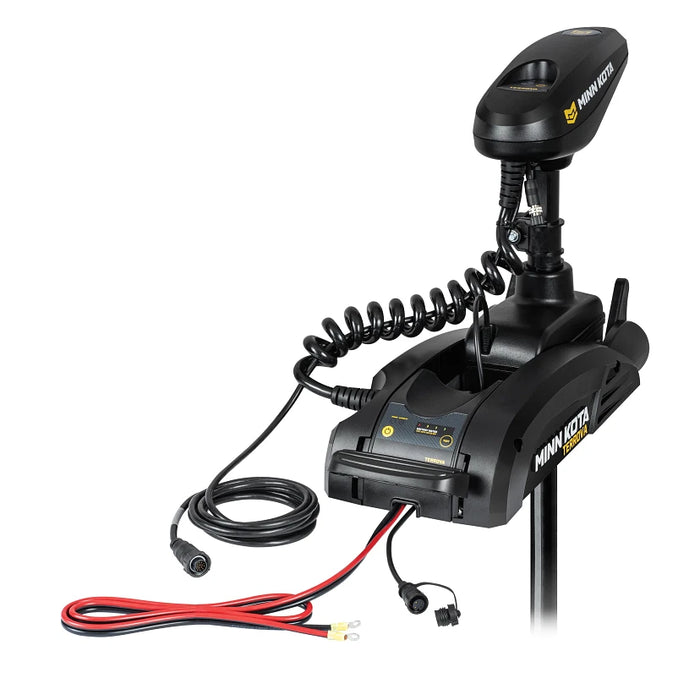

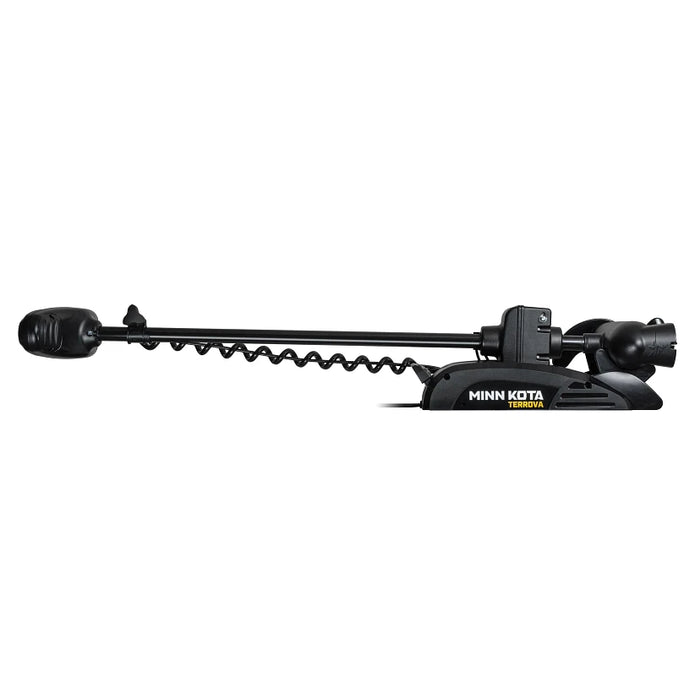

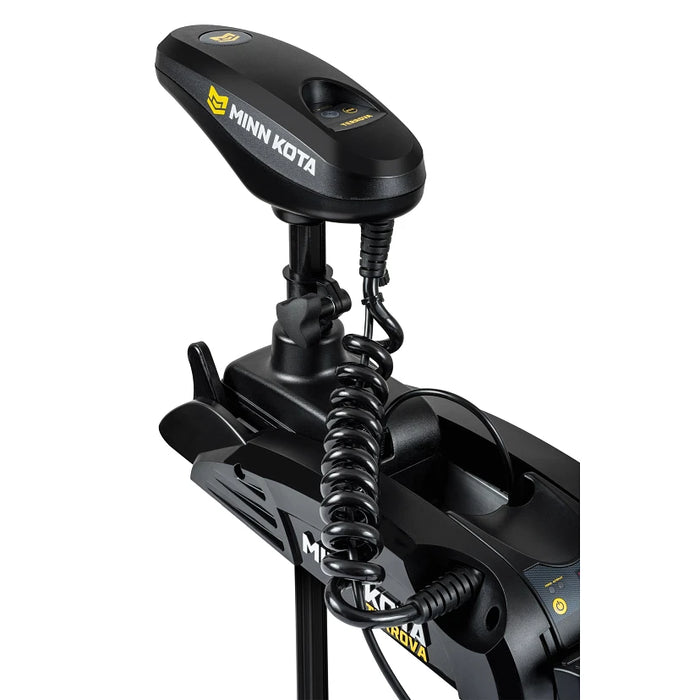

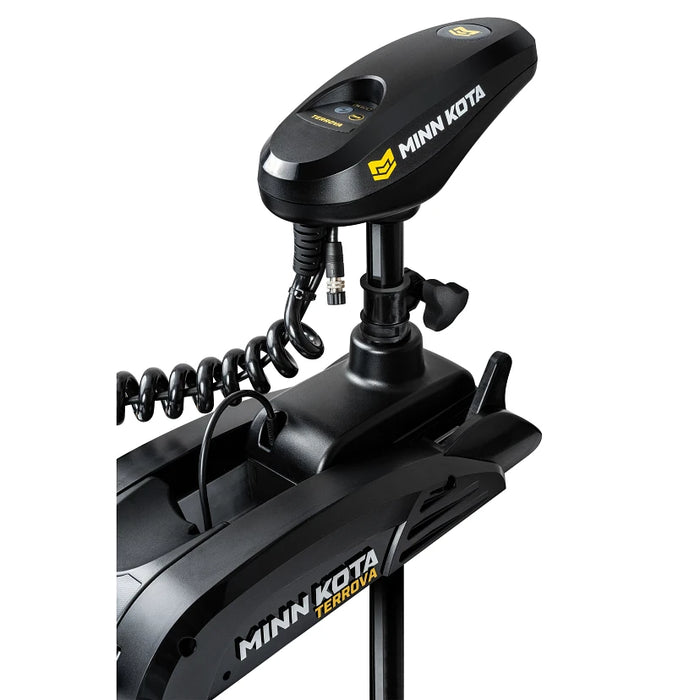

• Model: Terrova QUEST (multiple configurations available)
• Series: Terrova QUEST Brushless
• Price Range: $2,999.99 - $3,499.99 (varies by configuration)

MOTOR SPECIFICATIONS

• Max Thrust: 90/115 lb (dual voltage)
• Voltage: 24V/36V (dual voltage)
• Motor Type: QUEST Brushless (50% more torque, 30% longer runtime)
• Speed Control: Variable
• Max Amp Draw: 58 amps
• Digital Maximizer: Yes (up to 5x longer run time)

SHAFT & MOUNTING

• Shaft Length: 45", 54", 60", or 72" (select at purchase)
• Shaft Material: Carbon-Fiber Infused Composite (Lifetime Guarantee)
• Motor Style: Electric Steer
• Mounting Location: Bow-Mount
• Mount Style: Bolt-On
• Mounting Hardware: Included
• Reinforced Design: Beefier brackets and reinforced pivot points

PHYSICAL DIMENSIONS

• Length: 13.75 in (34.92 cm)
• Height: 16 in (40.64 cm)
• Width: 73 in (185.42 cm)
• Weight: 81 lb (36.74 kg)

GPS & NAVIGATION

• Advanced GPS System: Yes
• Spot-Lock: Yes (GPS anchor with unparalleled accuracy)
• Spot-Lock Jog: Yes (5-foot increments in any direction)
• AutoPilot: Yes
• Follow Mode: Yes (track depth, bottom hardness, or vegetation contours)
• Drift Mode: Yes (GPS drift control - automatic speed and course control)
• Dodge Mode: Yes (save route while manually dodging hazards)
• Heading Sensor: Built-In (no external sensor required)

CONTROL OPTIONS

• Wireless Remote: Included with lanyard
• Foot Pedal: Heel-Toe Electric Programmable (included, 18' cord)
• One-Boat Network App: Compatible (iOS & Android)
• Control Options: Wireless remote, foot pedal, smartphone app, Humminbird fish finder
• Programmable Button: User-programmable for waypoints, AutoPilot, or anchor deployment

SONAR FEATURES

• Built-In Sonar: None, Dual Spectrum CHIRP, MEGA Down Imaging, or MEGA Down/Side Imaging (select at purchase)
• Sonar Integration: Humminbird compatible
• Transducer Location: Through shaft (completely concealed and protected)
• CHIRP Technology: Wide range of frequencies for accurate fish and structure returns

BATTERY & POWER

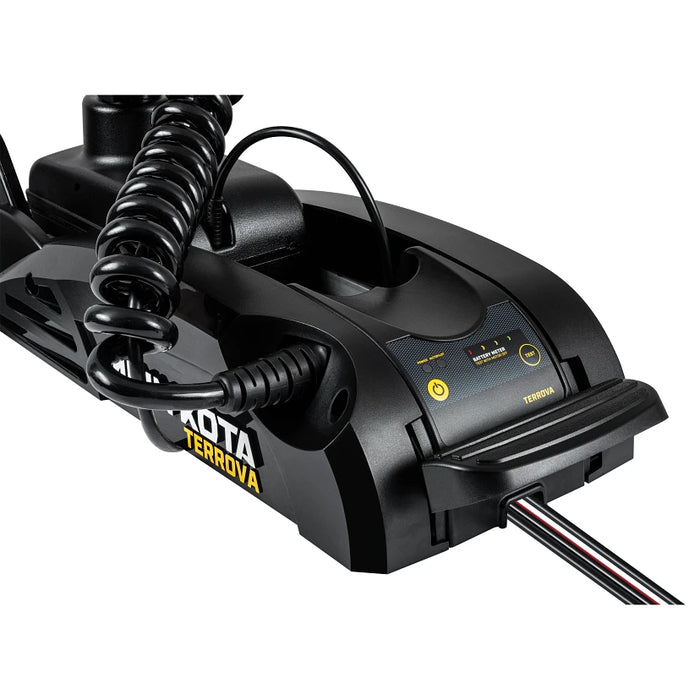

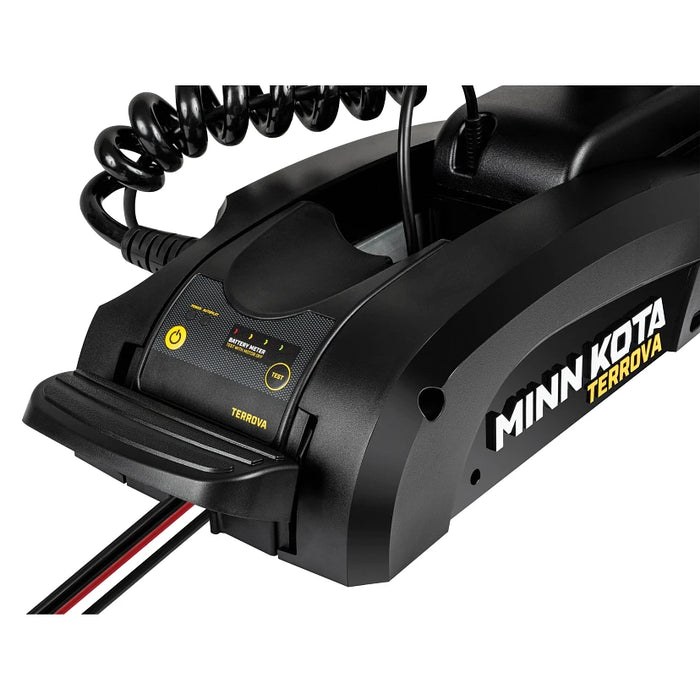

• Battery Meter: Yes (real-time monitoring)
• Time Until Empty Display: Yes (real-time battery monitoring)
• Low Battery Alert: Yes (20% warning notification)
• Eco Mode: Yes (reduces current draw to extend battery life)
• Power Efficiency: Up to 30% longer runtime vs standard motors

PROPELLER

• Standard Prop: Power Prop (MKP-40)
• Prop Included: Yes

ONE-BOAT NETWORK

• Compatible: Yes
• App Control: Yes
• Humminbird Integration: Yes
• Minn Kota Talon/Raptor Compatible: Yes
• Network Features: Full motor control through app or fish finder

ADDITIONAL FEATURES

• Stow/Deploy Lever: Yes (fall-away ramps for effortless deployment)
• Auto Park: Yes (automatic stow positioning)
• Lift Assist: No
• Power Trim: No
• Power Steering: Yes
• Auto Stow/Deploy: No
• Bowguard: No
• CoPilot: No
• Use: Freshwater
• Design: Completely redesigned from ground up with reinforced components

WARRANTY

• 3-Year Limited Warranty (with product registration)

WHAT'S INCLUDED

• Terrova QUEST trolling motor
• Wireless remote with lanyard
• Heel-toe electric programmable foot pedal (18' cord)
• Power Prop (MKP-40)
• Mounting hardware
