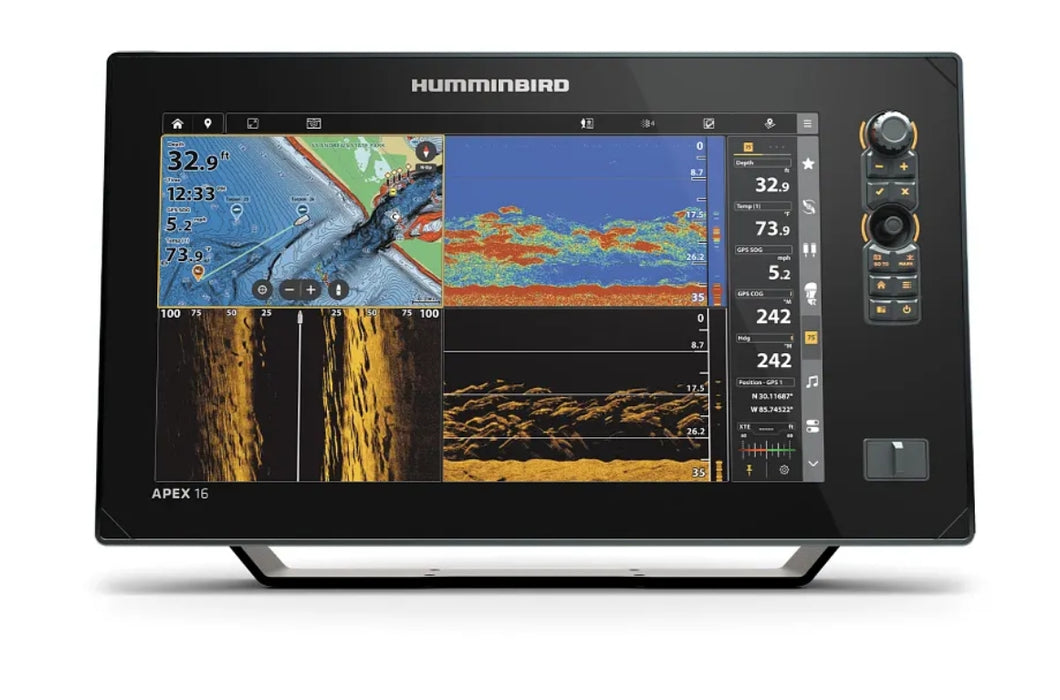

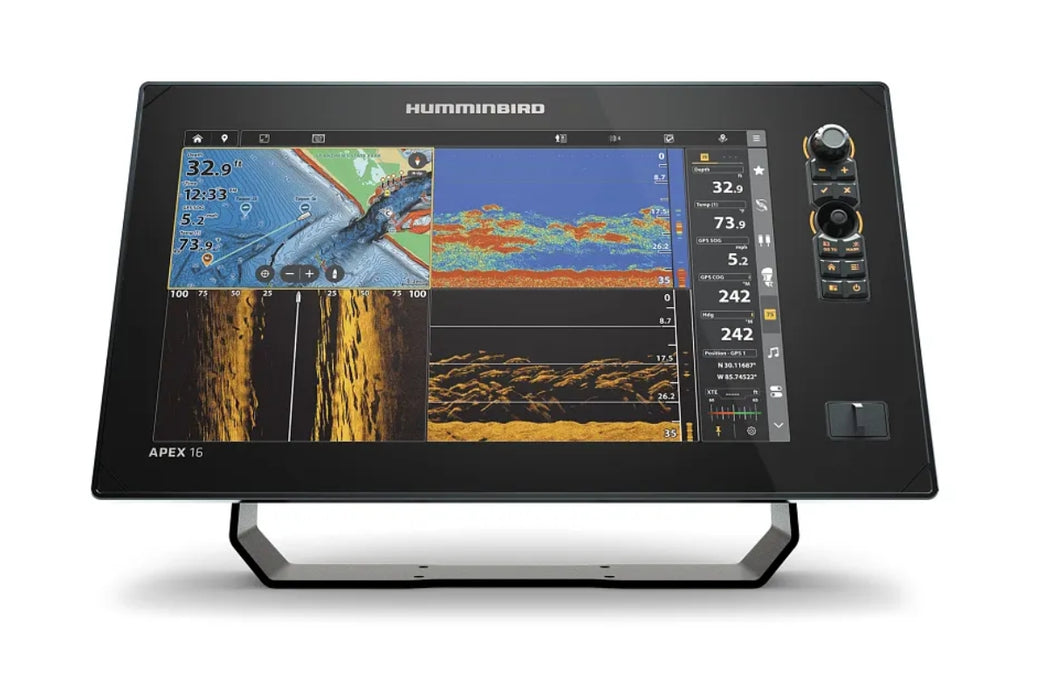

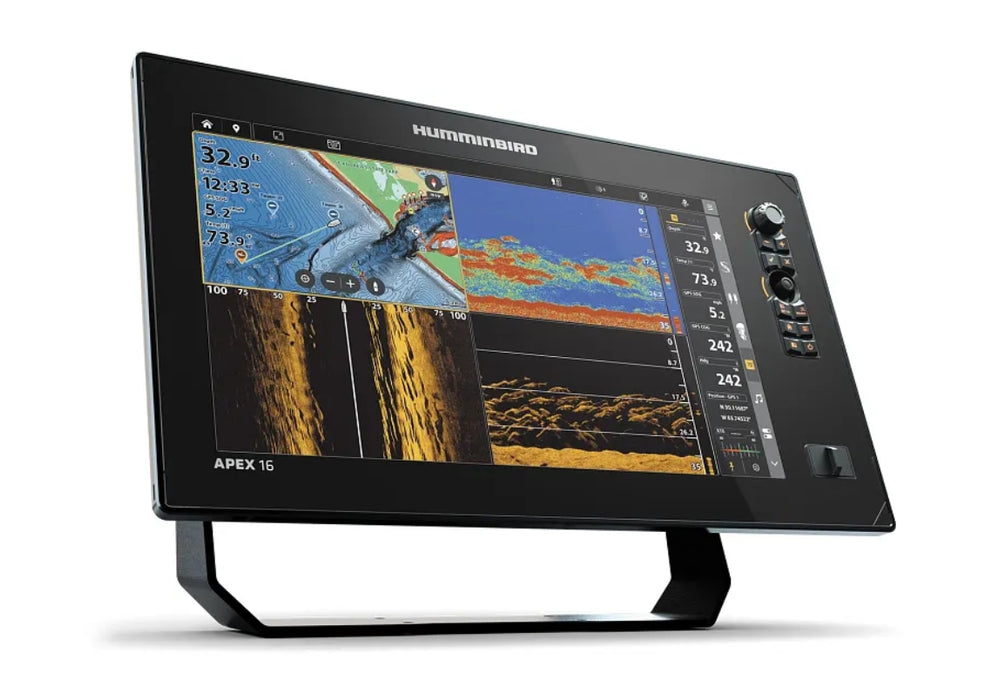

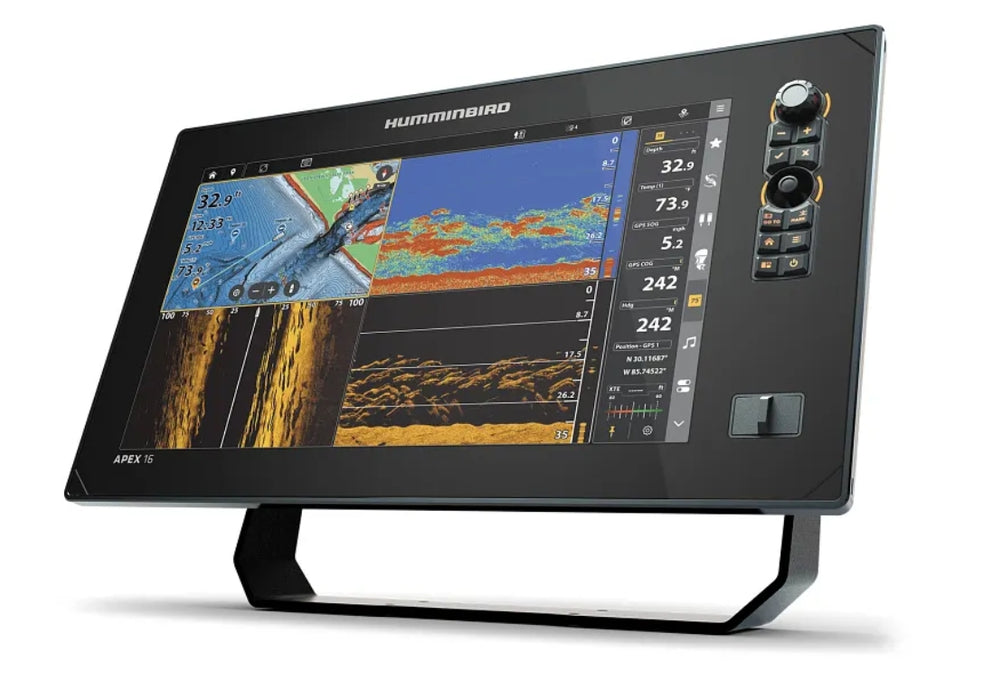

Humminbird APEX 16

Humminbird APEX 16

by Humminbird
$3,899.00 - $4,199.00
$3,899.00
$3,899.00 - $4,199.00
$3,899.00

Overview

The APEX 16 MSI+ Chartplotter provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. See it all with a 15.6" Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®. Find your fishing spots faster with included LakeMaster® and CoastMaster® VX Maps. Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada with confidence. Tools like 1-foot contours and depth and shallow water highlights help you traverse waters with certainty. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota®, and reach new depths with wireless Cannon® Optimum™ downrigger control. The APEX Series is a new kind of MFD that will take you fishing to a new level. This CHO (Control Head Only) model is the perfect pairing for anglers looking to select their own transducer, such as a Stainless Steel thru-hull option (SSTH 14 HW MSI+) or simply to add an additional display to an existing Humminbird network.
Features

Control Head Only Model:

  • This CHO model is a great choice for those looking to connect to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network control. Easily access the preloaded views from the user-friendly menu system, operated by touch screen or directional key pad to reliably operate your fish finder in any conditions.
  • MEGA Side Imaging+
  • See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
  • MEGA Down Imaging+
  • Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
  • Industry-leading Humminbird Sonar
  • Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
  • Internal GPS and Humminbird Basemap
  • Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible
  • Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • Includes LakeMaster® and CoastMaster® VX Maps
  • Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada safely and with confidence. Tools like 1-foot contours, depth and shallow water highlights help you traverse waters with certainty.
  • Built-in SmartStrike™
  • Included with all LakeMaster® and CoastMaster® charts, SmartStrike™ highlights the best fishing spots based on real-time conditions—right from your map card
  • AutoChart Live
  • Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
  • One-Boat Network Compatible
  • Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
  • Ethernet Networking
  • High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
  • Bluetooth
  • Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App.
  • NMEA 2000 Networking Built-in
  • Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
  • Compatible with MEGA Live 2 Sonar
  • Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom (Sold Separately).
  • In-Dash Installation Note
  • If indash mounted, an external GPS antenna is required to ensure accurate positioning and navigation.
  • Warranty
  • 3-Year Limited Warranty with Registration

Specs
  • Model: APEX 16 MEGA SI+ CHARTPLOTTER
  • Product Code: 411500-1VX
  • Series: APEX
  • UPC: 0082324061615
  • As shown MSRP$4,199.99
  • Display Size - Diagonal: 15.6 in
  • Length: 10.13 in | 25.73 cm
  • Height: 17.65 in | 44.83 cm
  • Width: 5.48 in | 13.92 cm
  • Weight: 10 lb 8 oz | 4.76272 kg
  • Display: Pixel Matrix 1920H x 1080V
  • Transducer: Included N/A
  • Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2
  • FeaturesTouch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
  • Memory Card Slot
  • Dual Micro SDSonar-Standard
  • Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+Sonar-Coverage20°, 42°, 60°, (2) 86° & (2) 55° @ -10dBSonar-Optional50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and LowCHIRP - Frequencies Supported
  • Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)Sonar-Frequencies Supported50/83/200/455/800 kHz, HW DSC CHIRP, and MEGADepth-Sonar3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer)
  • CHIRP - Imaging Frequencies SupportedMEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz)
  • Depth-Down Imaging: 250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)
  • Range-Side Imaging: (Side-To-Side)800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz)
  • InterfaceTouch ScreenPower Draw: 3.1 AmpsPower Input10.8-20 VDC
  • Power Output Peak-to-Peak8000 Watts
  • Power Output RMS1000 WattsScreen Snap Shot: Included
  • Sonar Recording: Included
  • Mount: Standard
  • GimbalMount: Standard Size15.6 in W x 9.88 in H x 4.88 in D
  • Mount: OptionalIn-Dash Mounting Kit
  • Mount: Optional
  • Size: 15.6 in W x 8.98 in H x 0.51 in D
  • Transducer Mount Location: N/A
  • GPS Chartplotting: Included
  • GPS Receiver: Internal
  • GPS Trackplotting: Included
  • Waypoints, Routes, Tracks/Points10,000, 50, 50/20,000
  • 360 Imaging Compatibility: Yes
  • MEGA Live CompatibilityYes
  • Humminbird Basemap: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility:Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum+ Compatibility: Yes
  • Platinum Compatibility: Yes
  • Minn Kota Advanced GPS Navigation Compatibility: Yes
  • Minn Kota i-Pilot Link Compatibility: Yes
  • Minn Kota Talon Shallow Water Anchor Compatibility: Yes
  • Radar Compatibility: Yes
  • 5-Port Ethernet Switch Compatibility: Yes
  • AIS CompatibilityOptionalAutopilot Compatibility: Yes
  • Heading Sensor GPS Compatibility: Yes
  • Heading Sensor GPS (NMEA 2000) Compatibility: Yes
  • NMEA2000 Included
  • Target Separation2.5 in Upgradable Software: Yes
  • View Preset Keys: Yes
  • X-Press Menu System: No
  • Custom Digital Readout: Yes
  • Custom View Selections: Yes
  • Display Colors Grayscale 16-Bit
  • Display Type: Color TFT
  • Speed Included Temperature Built In
  • Temperature Alarm: Yes
  • Temperature Graph: Yes
  • HDMI Compatible: Yes
  • WarrantyTwo-Year Warranty
