RAM Mount Marine Electronics Mount Long Arm Gimbal Bracket

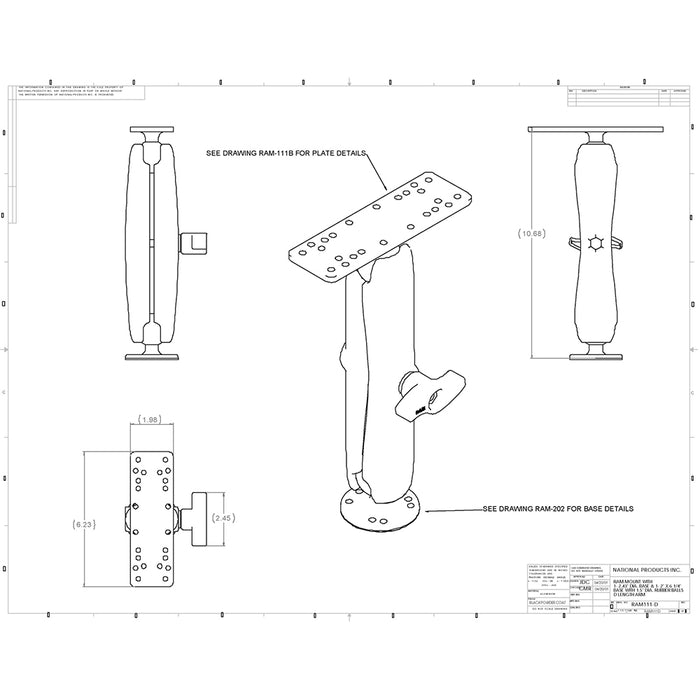

The RAM Mount Marine Electronics Mount Long Arm Gimbal Bracket (RAM-111U-D) is built for anglers who need their fishfinder or chartplotter positioned further out from the mounting surface. It pairs a 2.5" round base with the universal AMPS hole pattern, a long length double socket arm, and a 6.25" x 2" rectangle base with pre-drilled hole patterns that line up with Garmin, Humminbird, Lowrance, and Raymarine units. Powder coated marine grade aluminum with a 1.5" rubber ball that locks down tight once you have the angle set.

What It Does on the Water

The long arm on the RAM-111U-D gives you significantly more reach than a standard or short arm setup, which makes it the right call when your mounting surface is set back from where you want the display, or when you need to clear a console lip, steering wheel, or other obstruction. The 2.5" round base with universal AMPS hole pattern mounts to a wide range of surfaces, and the pre-drilled rectangle base lines up with factory hole patterns on most major brand fishfinders and chartplotters. The 1.5" rubber ball and double socket arm absorb shock and vibration while giving you full angle adjustment. Compatible with Garmin, Humminbird, Lowrance, and Raymarine units.

Professional Installation at Ben's Marine

A long arm mount gives you more flexibility in display placement, but it also means more leverage on the mounting surface. Our technicians make sure the bracket is mounted to a solid surface, wired cleanly, and positioned where you can actually see it while you're fishing.

Ben's Marine can handle:

• Fishfinder and chartplotter bracket mounting
• Console, gunwale, and dash panel installation
• Power wiring and cable management
• Transducer mounting and placement
• Network setup and sonar configuration
• Software updates and on-screen calibration

Ready to order or have questions about your current helm setup? Call or text us at (218) 820-9781. We're located in the Brainerd Lakes area and ship nationwide.
