RAM Mount Flat Surface Mount Short Arm w/Diamond Base

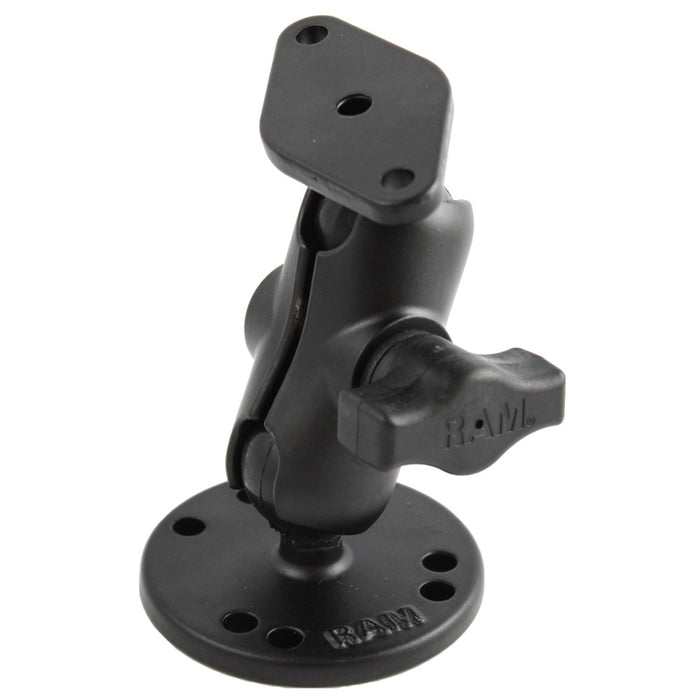

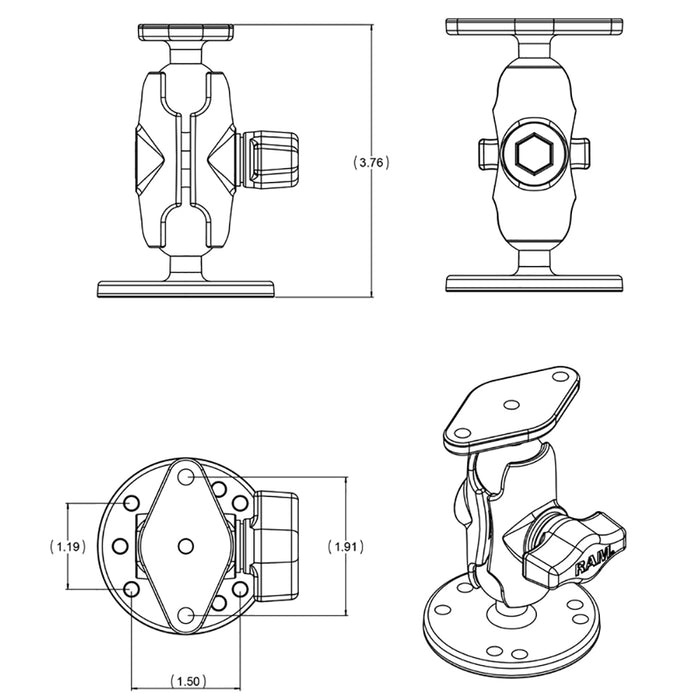

The RAM Mount Flat Surface Mount Short Arm with Diamond Base (RAM-B-138U-A) is a complete surface-to-surface mounting kit. It includes a 2.5" round base with the universal AMPS hole pattern, a short double socket arm, and a diamond base adapter. The 1" B size rubber ball and socket system has adjustment points at both ends of the arm. Overall height is 3.09". Powder coated marine grade aluminum.

What It Does on the Water

The RAM-B-138U-A gives you a flat surface mount on one end using the 2.5" AMPS round base, and a diamond base adapter on the other end for connecting to RAM cradles and device holders. The short double socket arm keeps the overall height low at 3.09", which works well in tight helm spaces. The 1" B size ball and socket system adjusts to almost any angle and locks down firmly. The patented rubber ball design absorbs shock and vibration to protect your electronics in rough water.

Professional Installation at Ben's Marine

Our technicians can incorporate this mount into a complete fishfinder or chartplotter setup, handling the bracket, wiring, and display positioning from start to finish.

Ben's Marine can handle:

• Fishfinder and chartplotter bracket mounting
• Console, gunwale, and dash panel installation
• Power wiring and cable management
• Transducer mounting and placement
• Network setup and sonar configuration
• Software updates and on-screen calibration

Ready to order or have questions about your current helm setup? Call or text us at (218) 820-9781. We're located in the Brainerd Lakes area and ship nationwide.
