RAM Mount 2-1/2" Diameter Base w/1.5" Ball

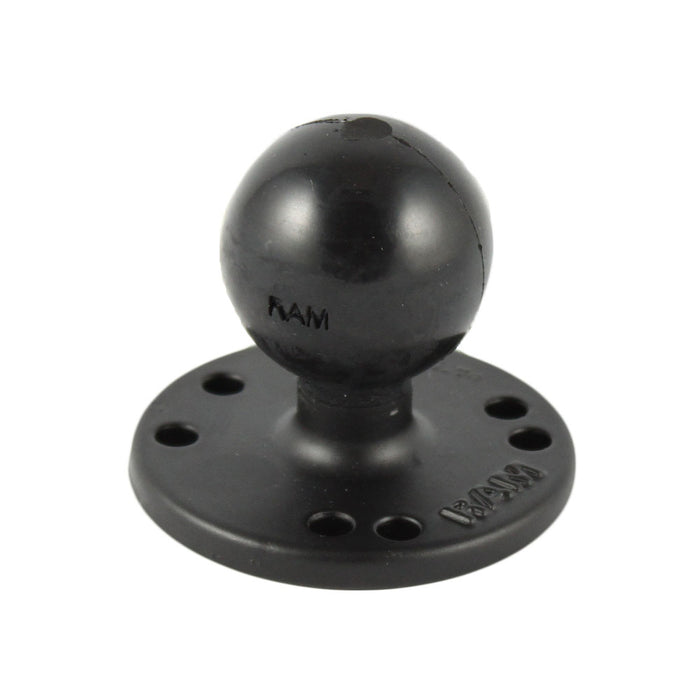

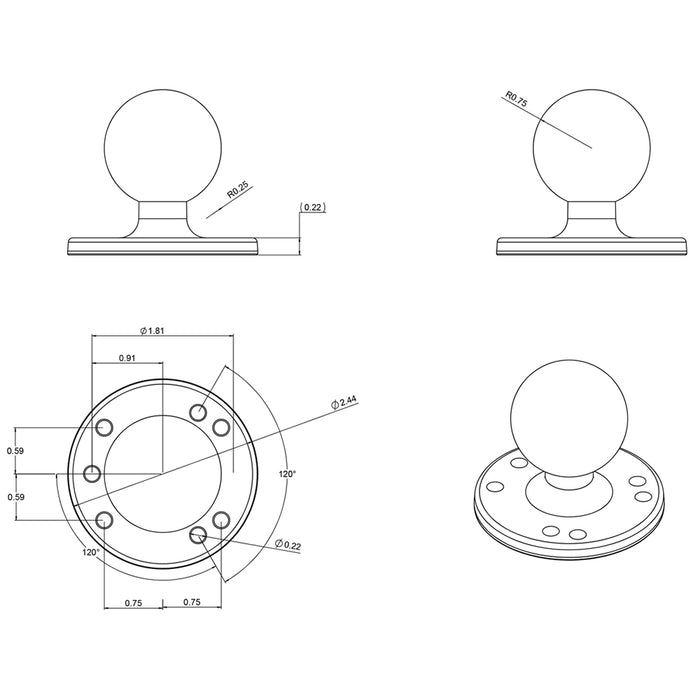

The RAM Mount 2-1/2" Diameter Base with 1.5" Ball (RAM-202U) is a powder coated marine grade aluminum round base with a 1.5" C size rubber ball. The 2.5" diameter flat base has pre-drilled holes including the universal AMPS hole pattern, giving you a wide range of mounting options on consoles, gunwales, and dash panels.

What It Does on the Water

This is a flat surface base component for building a 1.5" ball RAM mount system. It attaches to a flat surface through the pre-drilled AMPS hole pattern and provides a 1.5" C size rubber ball for connecting a compatible single or double socket arm. The 2.5" round base gives you a stable footprint on the mounting surface. Powder coated marine grade aluminum holds up to UV and saltwater exposure.

Professional Installation at Ben's Marine

Our technicians can incorporate this base into a complete fishfinder or chartplotter mounting setup, handling the bracket, wiring, and display positioning from start to finish.

Ben's Marine can handle:

• Fishfinder and chartplotter bracket mounting
• Console, gunwale, and dash panel installation
• Power wiring and cable management
• Transducer mounting and placement
• Network setup and sonar configuration
• Software updates and on-screen calibration

Ready to order or have questions about your current helm setup? Call or text us at (218) 820-9781. We're located in the Brainerd Lakes area and ship nationwide.
