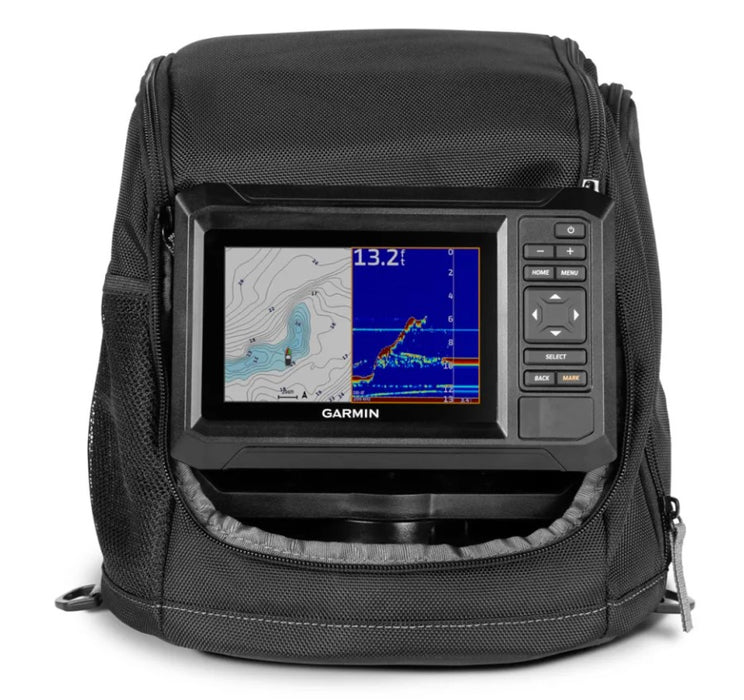

Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland
Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland
Model: 010-02590-35- BRIGHT 5" SUNLIGHT-READABLE DISPLAY
- INCLUDED DUAL BEAM-IF TRANSDUCER
- BUILT-IN FLASHER
- GARMIN NAVIONICS+™ MAPS WITH 23,000+ LAKES
- RUGGED, PORTABLE CARRYING CASE
CLEAR, HIGH-CONTRAST VIEWS ANYWHERE YOU FISH Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.
This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.
This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
You can create custom pages that combine sonar, flasher and map on your display.
The 5-inch ECHOMAP UHD2 also supports ClearVü™ scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).
Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications| General | |
| INPUT | Keyed |
| DISPLAY SIZE | 4.3" x 2.6" (10.9 x 6.6 cm) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, IPS |
| WEIGHT | 9.5 lbs (4.3 kg) |
| WATERPROOF | IPX7 |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Ice Fishing Details | |
| BATTERY TYPE, SIZE | SLA, 7Ah |
| BAG SIZE | Small |
| INCLUDED TRANSDUCER | DB-IF |
| TRANSDUCER HOLDING FEATURE | Foam float |
| Sensors | |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 5 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| SUPPORTS WAAS | Yes |
| 4-PIN TRANSDUCER PORTS Connections | 1 |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Input Voltage | 9 to 18 Vdc |
| Dimensions | 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm) |
What's in the Box:
- ECHOMAP™ UHD2 chartplotter
- Dual Beam-IF transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Foam float
- Power cable
- Rechargeable battery
- Battery charger
- Documentation
