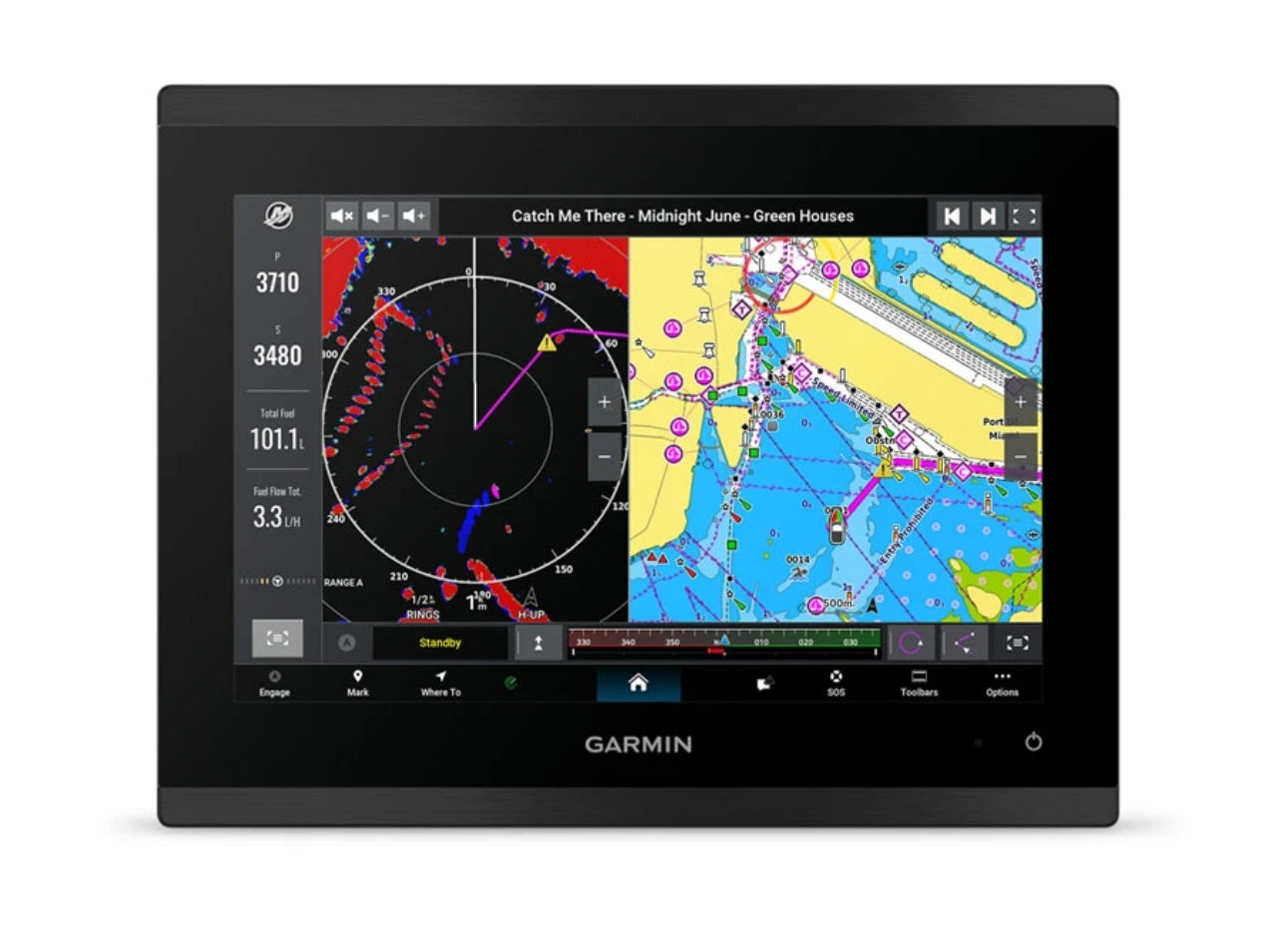

Garmin GPSMAP 9010 Review: Premium 10" Chartplotter for Serious Anglers | Ben's Marine

The Garmin GPSMAP 9010 is a premium 10-inch chartplotter designed for anglers and boaters who demand professional-grade navigation and fish-finding capabilities. At Ben's Marine & Motorsports in Brainerd, Minnesota, we've installed dozens of GPSMAP 9010 units across the Brainerd Lakes area, and we know exactly what makes this chartplotter stand out. In this review, you'll learn whether the GPSMAP 9010 is the right choice for your boat, what features deliver the most value, and how it compares to other premium chartplotters in 2025.

Questions about the GPSMAP 9010? Call Ben's Marine at (218) 820-9781 or schedule professional installation online.

What is the Garmin GPSMAP 9010?

The GPSMAP 9010 is Garmin's premium 10-inch touchscreen chartplotter with built-in sonar capabilities and worldwide basemap coverage. This unit sits at the top of Garmin's recreational marine electronics lineup, offering features typically found on commercial-grade systems but designed for serious recreational anglers and cruisers.

Key Specifications:

• 10-inch WXGA touchscreen display (1280 x 800 resolution)
• Built-in dual-channel CHIRP sonar
• Worldwide basemap included
• Network-capable (connects with Garmin marine network)
• Supports Panoptix LiveScope, SideVü, ClearVü, and DownVü
• 10 Hz GPS/GLONASS positioning
• Garmin Quickdraw Contours mapping
• J1939 engine integration
• IPX7 waterproof rating

Who Should Buy the GPSMAP 9010?

Best For:

• Serious tournament anglers fishing Mille Lacs, Gull Lake, and big water
• Multi-species anglers who need advanced sonar integration
• Boaters who want premium navigation features
• Those building a complete Garmin marine network
• Anyone upgrading from basic fish finders to professional-grade electronics

Not Ideal For:

• Casual weekend anglers on small boats (consider ECHOMAP UHD2 series)
• Budget-conscious buyers (better value in GPSMAP 7 series)
• Boats under 16 feet (10-inch screen may be oversized)

Display Quality: Bright, Clear, and Touchscreen-Responsive

The GPSMAP 9010's 10-inch WXGA display is one of its strongest features. We've tested this screen in full Minnesota summer sun on Gull Lake, and the brightness holds up impressively. The 1280 x 800 resolution delivers crisp detail whether you're viewing charts, sonar, or split-screen combinations.

Screen Performance in Real Conditions:

Bright Sunlight (Gull Lake midday): Excellent visibility with no glare issues. The anti-glare coating works well, and you can read the screen without squinting.

Low Light/Night Fishing: Multiple color palettes available. The night mode doesn't kill your night vision, which matters when you're fishing late-season walleyes.

Touchscreen Responsiveness: Very responsive, even with wet hands or gloves. The interface is intuitive if you've used any modern smartphone, you'll figure this out in minutes.

Viewing Angles: Good side-to-side viewing angles. If you're running the boat and your partner is navigating, they can read the screen from the passenger seat without issues.

Display Layout Options:

The GPSMAP 9010 excels at split-screen configurations. You can run:

• Chart + sonar (most common setup)
• Chart + LiveScope + traditional sonar (three-way split)
• Dual sonar views (LiveScope + DownVü)
• Chart + engine data + sonar

We typically install these units with the three-way split for walleye and bass anglers; chart on the left 40%, LiveScope in the center 35%, and traditional sonar on the right 25%. This gives you everything you need at a glance.

Sonar Capabilities: Built-In CHIRP Plus Network Expansion

The GPSMAP 9010 comes with built-in dual-channel CHIRP sonar, which handles traditional sonar and supports Garmin's advanced sonar technologies when paired with compatible transducers.

Built-In Sonar Features:

Dual-Channel CHIRP: Allows you to run two sonar frequencies simultaneously. For walleye fishing in Brainerd Lakes, we typically run medium CHIRP (83 kHz) and high CHIRP (200 kHz) together. The medium frequency gives you wider coverage for searching, while high frequency delivers finer detail when you mark fish.

CHIRP Sonar Benefits:

• Better target separation (you can distinguish individual fish in schools)
• Clearer thermocline definition (critical for summer walleye patterns)
• Improved bottom detail (structure shows up crisper)
• Better performance in deep water (maintains detail at 80+ feet on Mille Lacs)

Network Sonar Expansion:

Where the GPSMAP 9010 really shines is its ability to integrate with Garmin's network sonar technologies:

LiveScope: This is the big one. The GPSMAP 9010 is fully compatible with LiveScope Plus and LiveScope XR, giving you real-time forward-facing sonar. We've installed LiveScope on dozens of GPSMAP 9010 units, and the integration is seamless. The large screen size makes LiveScope easier to interpret—you can actually see fish behavior and lure presentations clearly.

ClearVü and SideVü: Photo-like sonar imaging. ClearVü gives you a clear picture of what's directly below the boat, while SideVü scans out to the sides. For finding standing timber on Gull Lake or rock piles on Pelican Lake, this combination is unbeatable.

Sonar Sharing: If you're running multiple GPSMAP units on your boat (say, a 9010 at the console and a 7-inch at the bow), they can share sonar data across the network. One transducer, multiple displays.

Our Installation Recommendation:

For serious anglers in the Brainerd Lakes area, we typically install the GPSMAP 9010 with:

1. GT54UHD-TM transducer (CHIRP, ClearVü, SideVü - transom mount)
2. LiveScope Plus LVS34 (trolling motor or pole mount)
3. This gives you traditional sonar, imaging sonar, AND forward-facing sonar, the complete package.

Installation typically takes 1-2 days with full network integration and calibration. Call (218) 820-9781 to schedule.

Mapping and Navigation Features

The GPSMAP 9010 includes a worldwide basemap, but to unlock its full potential in Minnesota waters, you'll want to add detailed lake maps.

Included Basemap:

The worldwide basemap provides basic coastline detail and major inland lakes. For the Brainerd Lakes area, this means you get outlines of Gull Lake, Mille Lacs, and other major waters, but without detailed depth contours or structure.

Recommended Map Upgrades:

LakeVü g3 Ultra: Garmin's premium freshwater map for the U.S. This includes 1-foot contours on 18,000+ lakes, including all the Brainerd Lakes area waters. If you fish Gull Lake, Pelican Lake, North Long Lake, or Mille Lacs, this upgrade is worth it. The detail shows sunken islands, reefs, and drop-offs that don't appear on the basemap.

Garmin Navionics+: Combines Garmin and Navionics data. Includes Auto Guidance feature (auto-routes you around shallow water) and Daily Updates for chart corrections.

Quickdraw Contours:

This is one of our favorite features. The GPSMAP 9010 can create custom depth maps as you fish. Every time you're on the water, the unit records depth data and builds increasingly detailed contour maps of your favorite lakes.

Why This Matters in Brainerd Lakes:

Many smaller lakes (South Long Lake, Cross Lake, etc.) don't have detailed commercial maps. With Quickdraw Contours, you can map these lakes yourself. We've had customers create incredibly detailed maps of their local lakes that show structure nobody else knows about.

You can also share your Quickdraw maps with friends or download community-created maps from other anglers. The maps save to a microSD card.

Navigation Tools:

10 Hz GPS Refresh: Position updates 10 times per second vs. standard 1 Hz GPS. This means smoother, more accurate tracking, especially at higher speeds. When you're running across Mille Lacs at 40 mph, your position updates in real-time with no lag.

Waypoint Management: Create unlimited waypoints. For serious anglers, this means you can mark every productive spot, school of baitfish, or piece of structure you find. Organize waypoints into folders (e.g., "Gull Lake Walleye," "Pelican Lake Bass," etc.).

Route Planning: Create routes with multiple waypoints. Plan your tournament run the night before, then follow the route precisely on tournament day.

Auto Guidance: When paired with Navionics+ maps, the GPSMAP 9010 can auto-generate routes that avoid shallow water and obstacles. Set your draft depth, and it routes you safely.

Network Integration: Building Your Complete System

The GPSMAP 9010 is designed to be the hub of a complete Garmin marine network. This is where it separates from standalone fish finders.

Garmin Marine Network:

Connect multiple devices via Ethernet cable:

• Additional GPSMAP chartplotters (at bow, at stern)
• Garmin Reactor autopilot
• Garmin Force trolling motors (control trolling motor from chartplotter)
• Radar (25 kW or 50 kW dome radar)
• AIS (Automatic Identification System for vessel tracking)
• GCV sonar modules (additional sonar processing)
• VHF radios (integrate radio with chartplotter)

Real-World Example:

One of our tournament customers runs a GPSMAP 9010 at the console, a GPSMAP 743 at the bow, and a Garmin Force Kraken trolling motor. From the console, he can:

• See what the bow unit is displaying
• Control the trolling motor (set waypoints, use Auto Pilot)
• Share sonar between units
• View radar and charts simultaneously

It's a fully integrated system, and the GPSMAP 9010 serves as the brain of the operation.

Engine Integration (J1939):

The GPSMAP 9010 supports J1939 engine integration with compatible outboards and inboards. This displays engine data (RPM, fuel flow, temperature, hours, diagnostics) right on the chartplotter screen.

Supported Engine Brands:

• Yamaha
• Mercury
• Evinrude
• Suzuki
• Honda
• Many others

For multi-engine boats, you can monitor both engines simultaneously. Track fuel economy, diagnose check-engine codes, and monitor engine health; all from the chartplotter.

Installation Considerations

The GPSMAP 9010 requires professional installation for best results. Here's what's involved:

Mounting Options:

Flush Mount: Most common for center consoles and fiberglass boats. Requires cutting a rectangular hole in the dash. Clean, professional appearance. Installation includes fabricating a mounting bracket and running all wiring behind the console.

Gimbal Mount: Surface-mount option with tilting bracket. Best for boats where flush mounting isn't feasible. Still looks professional and allows you to adjust screen angle.

Bail Mount: Removable mount for boats where you want to take the unit off when not in use. Less common for a 10-inch unit this expensive, but available.

Installation Complexity:

Typical Installation Includes:

1. Mounting the display (flush or gimbal mount)
2. Running power cables (requires 12V DC connection, 2A draw)
3. Installing and calibrating transducer(s)
4. Running transducer cables (waterproof connections critical)
5. Network cable installation (if integrating with other devices)
6. Configuring all settings and preferences
7. Testing on-water to verify everything works correctly

Installation Time: 4-6 hours for a basic setup (display + one transducer). Full network installations with multiple sonars, radar, and engine integration can take 1-2 days.

Why Professional Installation Matters:

We see a lot of DIY installations with issues:

• Transducers mounted at wrong angle (affects sonar performance)
• Cables run through areas that interfere with compass or cause electrical noise
• Settings not optimized for Minnesota fishing conditions
• Network connections improperly terminated

Our installations come with setup optimization, on-water testing, and training on how to use the features you'll actually need. When you buy from Ben's Marine, we make sure it works right from day one.

Schedule professional installation: (218) 820-9781

GPSMAP 9010 vs. Competition: How Does It Compare?

GPSMAP 9010 vs. GPSMAP 923

GPSMAP 923:

• 9-inch screen vs. 10-inch
• Lower resolution (800 x 480 vs. 1280 x 800)
• Same sonar capabilities
• $500-700 less expensive

Bottom Line: The 923 offers similar functionality in a smaller package. If budget matters and you don't need the extra screen real estate, the 923 is excellent value. The 9010's larger, higher-resolution screen is better for split-screen use and LiveScope.

GPSMAP 9010 vs. Lowrance HDS Live 10

Lowrance HDS Live 10:

• Similar 10-inch screen size
• Active Imaging (Lowrance's version of ClearVü/SideVü)
• ActiveTarget (Lowrance's LiveScope competitor)
• Similar price point

Bottom Line: Very comparable units. We give the edge to Garmin for user interface and network integration, but Lowrance has a loyal following. Both are excellent. Your choice often comes down to brand preference and what other electronics you already own.

GPSMAP 9010 vs. Humminbird XPLORE 10

Humminbird XPLORE 10:

• 10.1-inch screen
• MEGA Imaging (Humminbird's high-frequency imaging)
• MEGA Live (forward-facing sonar)
• Cross Touch interface (touchscreen + buttons)

Bottom Line: The XPLORE 10 is Humminbird's premium offering and competes directly with the GPSMAP 9010. The XPLORE has more physical buttons (some anglers prefer this), while the GPSMAP 9010 is primarily touchscreen. Both are excellent choices for serious anglers.

Pros and Cons: Our Honest Assessment

What We Love About the GPSMAP 9010:

✓ Exceptional display quality - Bright, sharp, easy to read in all conditions
✓ Network integration - Builds into a complete marine electronics system
✓ LiveScope compatibility - Large screen makes forward-facing sonar easy to interpret
✓ Quickdraw Contours - Create custom maps of your favorite lakes
✓ Dual-frequency CHIRP - Excellent traditional sonar performance
✓ 10 Hz GPS - Smooth, accurate position tracking
✓ Build quality - Feels premium, IPX7 waterproof, built to last
✓ User interface - Intuitive, responsive, easy to learn

What Could Be Better:

✗ Price - This is a premium unit with a premium price tag ($2,000-2,400 depending on package)
✗ Maps sold separately - Detailed lake maps are an additional purchase (LakeVü g3 Ultra adds $150-200)
✗ Size - 10 inches may be too large for smaller boats (under 16 feet)
✗ Touchscreen only - No physical buttons (can be harder to use with gloves in winter)

Complete LiveScope Package: $3,799 ⭐ MOST POPULAR

• GPSMAP 9010 chartplotter
• GT54UHD-TM transducer
• Panoptix LiveScope Plus LVS34
• Trolling motor or pole mount for LiveScope
• Professional installation included
• Full calibration and training

Recommended Add-Ons:

LakeVü g3 Ultra Map Card: $199 - Essential for detailed Brainerd Lakes mapping
Additional GPSMAP unit (for bow): $600-1,200 - Networked second display
Garmin Force Trolling Motor: $3,500+ - Full integration with chartplotter
Marine Radar: $800-1,800 - Adds radar overlay to charts

Frequently Asked Questions

How much does the GPSMAP 9010 cost installed?

LiveScope packages range from $3,800-4,500 depending on configuration. We offer free quotes call (218) 820-9781.

Does the GPSMAP 9010 come with lake maps?

The unit includes a worldwide basemap with basic lake outlines. For detailed depth contours and structure on Brainerd Lakes area waters, you'll want to add LakeVü g3 Ultra ($199). The investment is worth it 1-foot contours on Gull Lake, Mille Lacs, and 18,000+ other lakes.

Can I install the GPSMAP 9010 myself?

You can, but professional installation is recommended. Proper transducer mounting, cable routing, and network integration require experience. We've fixed many DIY installations where transducer angle was off or settings weren't optimized. Our installations include setup, calibration, and training.

Is the GPSMAP 9010 compatible with LiveScope?

Yes, fully compatible with Panoptix LiveScope, LiveScope Plus, and LiveScope XR. The 10-inch screen is actually ideal for LiveScope—the larger display makes it easier to see fish and lure presentations clearly.

How does the GPSMAP 9010 compare to the Lowrance HDS Live 10?

Both are excellent premium 10-inch chartplotters with similar capabilities. The GPSMAP 9010 has a more intuitive touchscreen interface and better network integration in our opinion. The HDS Live 10 offers ActiveTarget (similar to LiveScope) and has a strong following among musky and bass anglers. Both are great choices.

Can I control a Garmin trolling motor from the GPSMAP 9010?

Yes, the GPSMAP 9010 integrates fully with Garmin Force trolling motors. You can set waypoints, use Auto Pilot, control steering, and more all from the chartplotter screen. This integration is one of Garmin's biggest advantages.

What's included in professional installation?

Our installation includes mounting the display (flush or gimbal), running all power and network cables, installing and calibrating transducers, configuring settings for Brainerd Lakes fishing, on-water testing, and training you on how to use the features. Installation takes 4-6 hours for basic setups, 1-2 days for complete network installations.

Does the GPSMAP 9010 work in winter for ice fishing?

The unit itself is rated for operation down to -15°F. However, the touchscreen can be less responsive in extreme cold. For dedicated ice fishing, we typically recommend portable units designed specifically for ice. That said, many customers use their GPSMAP 9010 for ice fishing with Panoptix LiveScope in an ice house setup.

Final Verdict: Should You Buy the GPSMAP 9010?

Buy the GPSMAP 9010 if:

• You're a serious angler who fishes 30+ days per year
• You fish big water (Mille Lacs, Gull Lake, Lake of the Woods)
• You want to integrate LiveScope with a large, easy-to-read display
• You're building a complete Garmin marine network
• You value premium features and are willing to pay for them
• You fish tournaments and need professional-grade electronics

Consider alternatives if:

• You're a casual weekend angler (ECHOMAP UHD2 series offers better value)
• You primarily fish small lakes under 500 acres (7-inch units are sufficient)
• You're on a tight budget (GPSMAP 7-inch series is $600-800 less)
• You don't need network integration or advanced sonar

Our Take:

After installing and using the GPSMAP 9010 extensively across the Brainerd Lakes area, we believe it's one of the best premium chartplotters available in 2025. The combination of a brilliant 10-inch display, dual-frequency CHIRP sonar, network integration, and LiveScope compatibility makes it ideal for serious anglers who want professional-grade performance.

The price is high, but you're getting a chartplotter that will serve you for 5-10 years. When you factor in the display quality, sonar capabilities, and ability to grow your system over time, the value is there for dedicated anglers.

If you fish Mille Lacs, Gull Lake, or other big water regularly especially if you're running LiveScope the GPSMAP 9010 is an excellent investment.
